EG24 DIODE FOR XBOX SERIES X | S & ONE X
£1.50
EG24 Diode for XBOX SERIES X | S & ONE X
This is for x5 EG24 components.

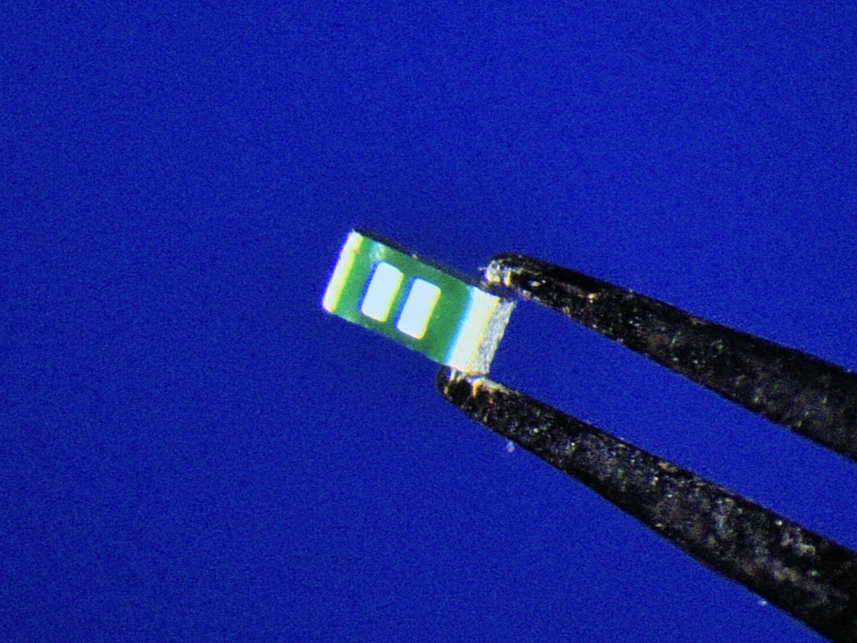

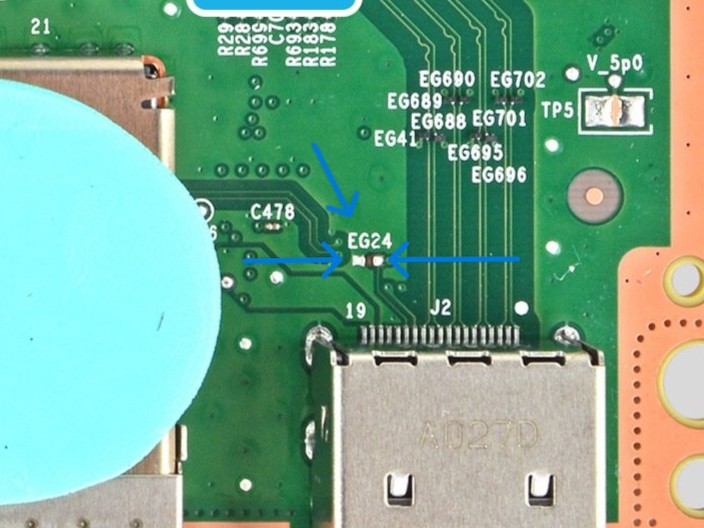

This is a bi-directional diode that is part of the HDMI circuit to protect the ESD IC.
If this component is shorted it can cause no display.
Removing this component will leave the ESD IC with out protection on PIN 14.
The diagnosis and installation of this IC is for experienced technicians with the correct tools ONLY!
Returns ONLY accepted if the IC is returned unused and still sealed in the black ‘pick & place’ tape – as you received it.
Please see below for specs and more scary warnings:
20 in stock

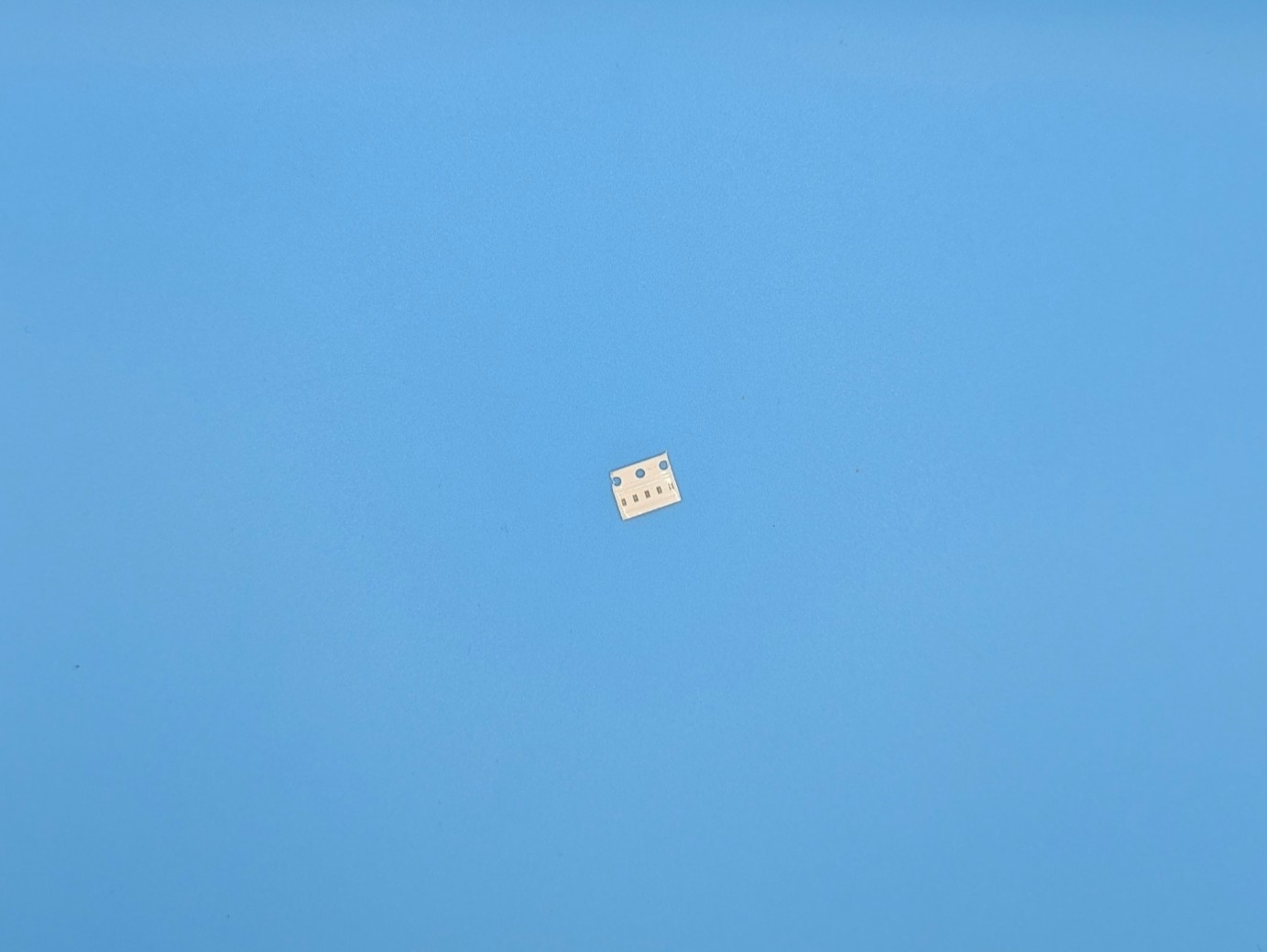

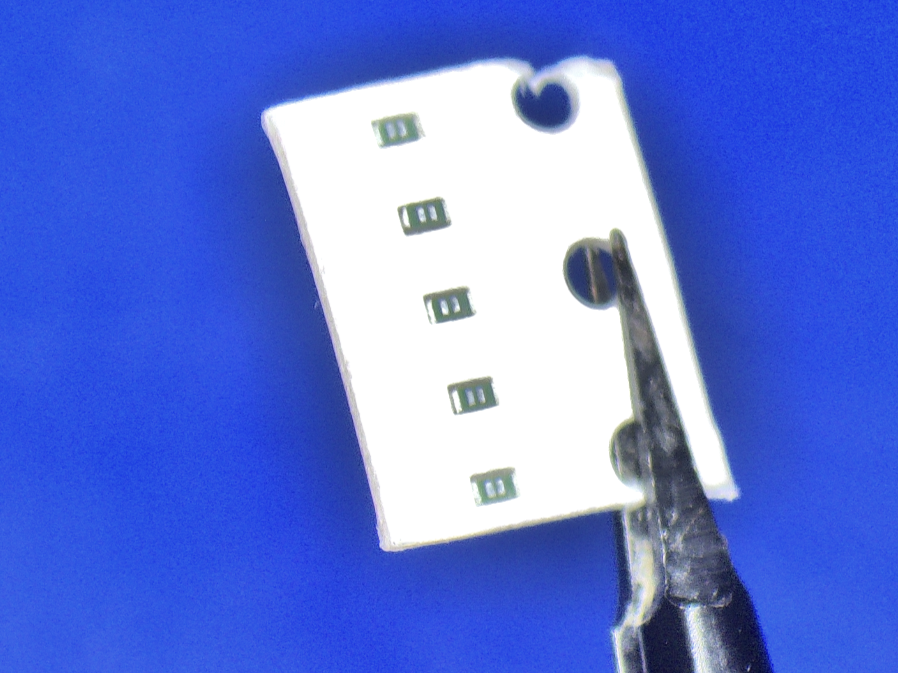

x5 EG24 Bi-directional protection diode in pick & place tape new.
The WARNING STUFF!!
This is aimed at the experienced / professional repair community.
Quality tools, experience with removing IC’s and micro soldering is not a recommendation – it is essential!
Not to mention the diagnostic skills to rule out the following before hand:
- HDMI port
- HDMI Re-Driver IC
- HDMI TVS diodes
- HDMI ESD IC
- 80 Pin connector and SoC board
- Anything else…
| Weight | 0.02 kg |
|---|---|
| Dimensions | 25 × 10 × 1 cm |
