TVS DIODE FOR XBOX SERIES X | S (10 pack)
£1.50
TVS DIODE FOR XBOX SERIES X | S (10 pack)

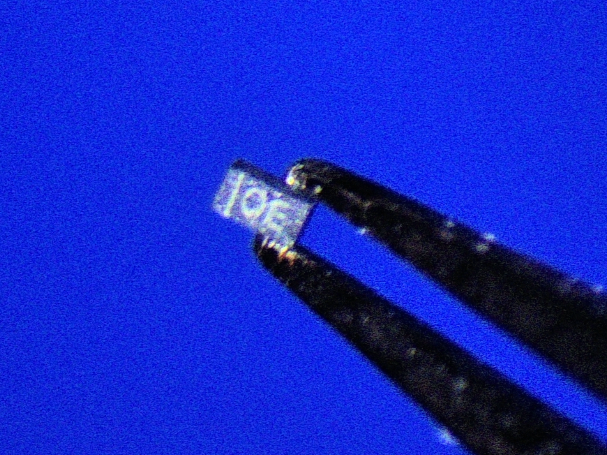

This is for x10 TVS Diodes.
These are protection diodes that is part of the HDMI circuit to protect the redriver IC (NB7NQ621M).
If this component is shorted it can cause no display.
Removing this component will not stop the display working as the traces are continuous however the console is very susceptible to having the redrive IC damaged due to ESD. Not recommended to leave them out.
The diagnosis and installation of this IC is for experienced technicians with the correct tools ONLY!Â
Returns ONLY accepted if the IC is returned unused and still sealed in the black ‘pick & place’ tape – as you received it.Â
Please see below for specs and more scary warnings:
20 in stock

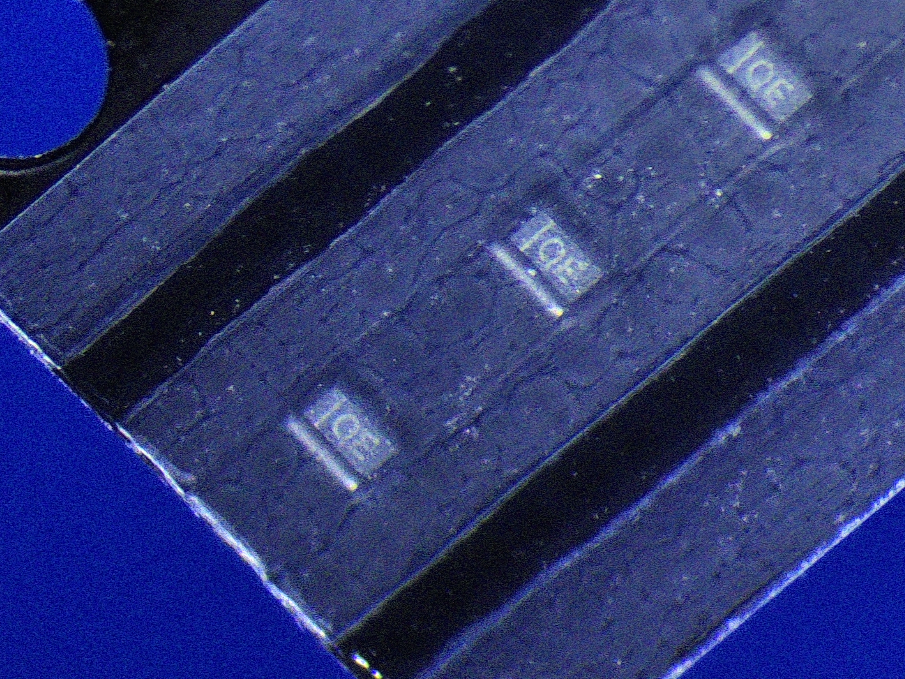

x10 TVS protection diode in pick & place tape new.Â

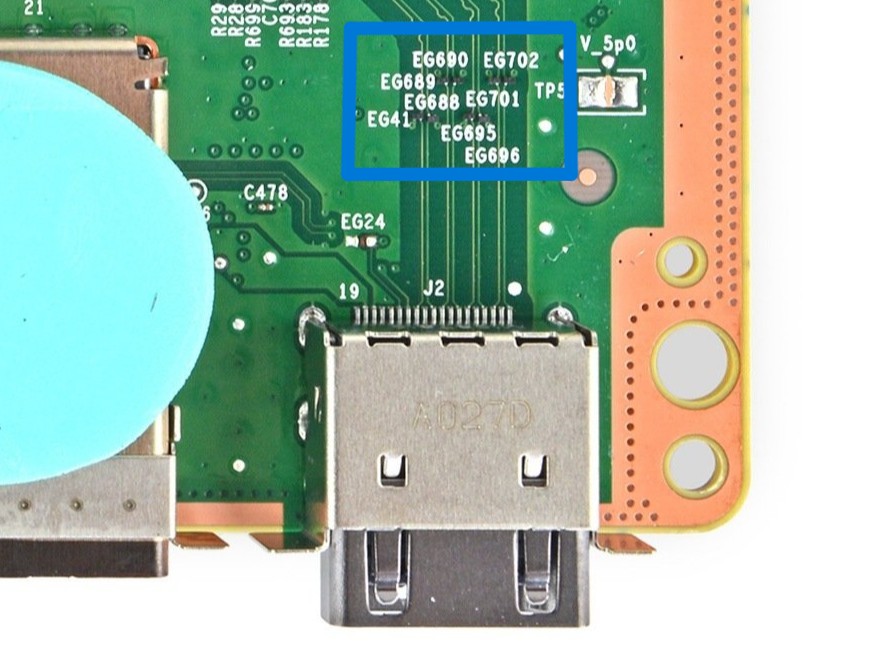

This replaces the eight TVS diodes behind the HDMI port with some to spare.
The WARNING STUFF!!
This is aimed at the experienced / professional repair community.
Quality tools, experience with removing IC’s and micro soldering is not a recommendation – it is essential!
Not to mention the diagnostic skills to rule out the following before hand:
- HDMI port
- HDMI Re-Driver IC
- HDMI TVS diodes
- HDMI ESD IC
- 80 Pin connector and SoC board
- Anything else…Â
